6ES7138-4CF03-0AB0
SIEMENS ET 200S, SIMATIC DP, Power Module PM-E F PROFIsafe, f. ET200S; 24 V DC suitable for ungrounded setup relay for switching the voltage buses P1 and P2 up to Category 3 (EN 954-1)/ SIL2 (IEC61508)/PLD (ISO13849), 2 fail-safe dig. outputs up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), can also be used in PROFINET configuration with IM 151-3 HF

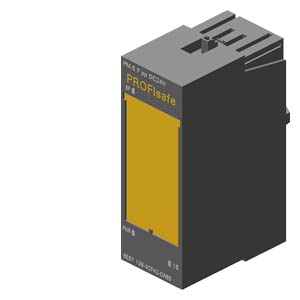

6ES7138-4CF42-0AB0
SIEMENS ET 200S, SIMATIC DP, Power Module PM-E F PROFIsafe, f. ET200S; 24 V DC suitable for grounded setup relay for switching the voltage buses P1 and P2 up to Category 3 (EN 954-1)/ SIL2 (IEC61508)/PLD (ISO13849), can also be used in PROFINET configuration with IM 151-3 HF

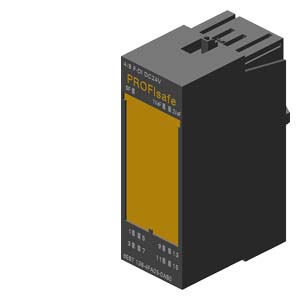

6ES7138-4FA05-0AB0
SIEMENS ET 200S, SIMATIC DP, Electronics module f. ET200S, 4/8 F-DI PROFIsafe, 24 V DC, 30 mm overall width, up to PL E (ISO 13849), Up to SIL3 (IEC 61508), can also be used in PROFINET configuration with IM 151-3 HF
6ES7138-4FB04-0AB0
SIEMENS ET 200S, SIMATIC DP, Electronics module for ET 200S, 4 F-DO PROFIsafe, 24 V DC/2 A, 30 mm overall width, up to PL E (ISO 13849), up to SIL 3 (IEC 61508), can also be used in PROFINET configuration with IM 151-3 HF

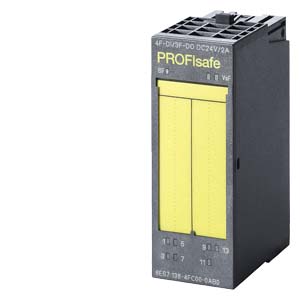

6ES7138-4FC01-0AB0
SIEMENS ET 200S, SIMATIC DP, Electronics module f. ET200S, 4 F-DI/3 F-DO 24 V DC/2A PROFIsafe, 30 mm overall width up to Category 3 (EN 954-1)/ SIL2 (IEC61508)/PLD (ISO13849), can also be used in PROFINET configuration with IM 151-3 HF

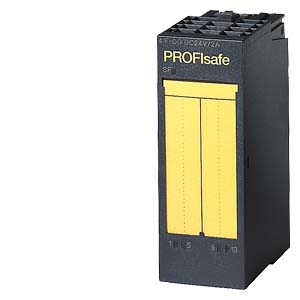

6ES7138-4FR00-0AA0
SIEMENS ET 200S, SIMATIC DP, Electronics module 1F-RO 24 V DC/AC 24..230V/5A, f. ET200S, 30 mm overall width, 1 relay output (2 NO) Output current 5 A, load voltage 24 V DC and 24...230 V AC, Can be used up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), if control takes place F-DO (e.g. 6ES7138-4FB02-0AB0) F-DQ

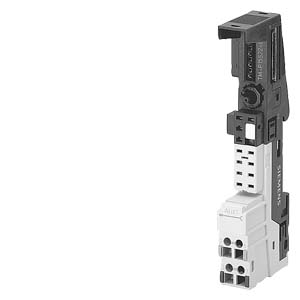

6ES7193-4CC20-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-P15S23-A1 for ET 200S for power modules, 15 mm width, Screw terminals 2x3 terminal connections with terminal access to AUX1, AUX1 continuous
6ES7193-4CC20-1AA0
SIEMENS ET 200S, SIMATIC DP, 5 terminal modules TM-P15S23-A1 for ET 200S for power modules, 15 mm width, Screw terminals 2x3 terminal connections with terminal access to AUX1, AUX1 continuous 5 units per packing unit
6ES7193-4CC30-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-P15C23-A1 for ET 200S for power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x3 terminal connections with terminal access to AUX1, AUX1 continuous

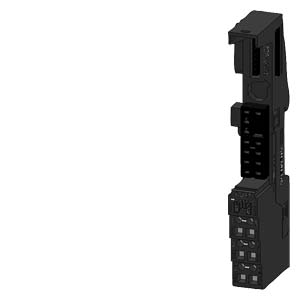

6ES7193-4CC30-1AA0
SIEMENS ET 200S, SIMATIC DP, 5 terminal modules TM-P15C23-A1 for ET 200S for power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x3 terminal connections with terminal access to AUX1, AUX1 continuous 5 units per packing unit
6ES7193-4CD20-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-P15S23-A0 for ET 200S for power modules, 15 mm width, Screw terminals 2x3 terminal connections with terminal access to AUX1, AUX1 interrupted
6ES7193-4CD20-1AA0
SIEMENS ET 200S, SIMATIC DP, 5 terminal modules TM-P15S23-A0 for ET 200S for power modules, 15 mm width, Screw terminals 2x3 terminal connections with terminal access to AUX1, AUX1 interrupted 5 units per packing unit
6ES7193-4CD30-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-P15C23-A0 for ET 200S for power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x3 terminal connections with terminal access to AUX1, AUX1 interrupted

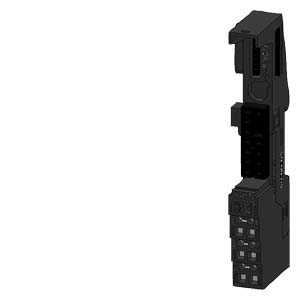

6ES7193-4CD30-1AA0
SIEMENS ET 200S, SIMATIC DP, 5 terminal modules TM-P15C23-A0 for ET 200S for power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x3 terminal connections with terminal access to AUX1, AUX1 interrupted 5 units per packing unit
6ES7193-4CE00-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-P15S22-01 for ET 200S for power modules, 15 mm width, Screw terminals 2x2 terminal connections without terminal access to AUX1, AUX1 continuous

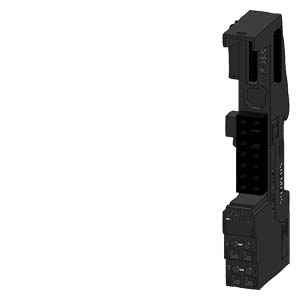

6ES7193-4CE00-1AA0
SIEMENS ET 200S, SIMATIC DP, 5 terminal modules TM-P15S22-01 for ET 200S for power modules, 15 mm width, Screw terminals 2x2 terminal connections without terminal access to AUX1, AUX1 continuous 5 units per packing unit
6ES7193-4CE10-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-P15C22-01 for ET 200S for power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x2 terminal connections without terminal access to AUX1, AUX1 continuous

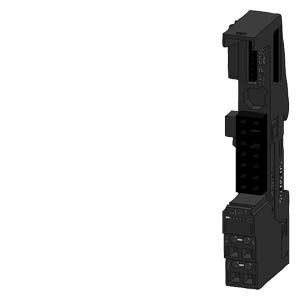

6ES7193-4CE10-1AA0
SIEMENS ET 200S, SIMATIC DP, 5 terminal modules TM-P15C22-01 for ET 200S for power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x2 terminal connections without terminal access to AUX1, AUX1 continuous 5 units per packing unit

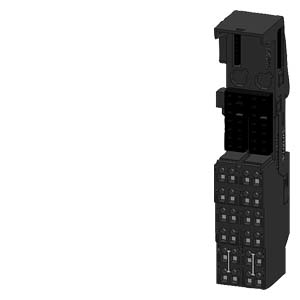

6ES7193-4CF40-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-E30S46-A1 for ET 200S for electronic modules 30 mm overall width, Screw terminals, 4x 6 terminal connections with terminal access to AUX1, AUX1 continuous

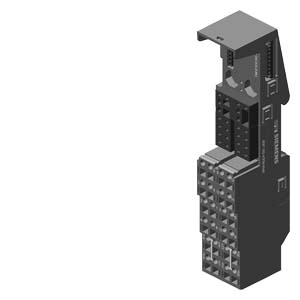

6ES7193-4CF50-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-E30C46-A1 for ET 200S for electronic modules 30 mm overall width, spring-type terminals 4x 6 terminal connections with terminal access to AUX1, AUX1 continuous
6ES7193-4CG20-0AA0
SIEMENS ET 200S, SIMATIC DP, 1 terminal module TM-E30S44-01 for ET 200S for electronic modules 30 mm overall width, Screw terminals, 4x 4 terminal connections without terminal access to AUX1, AUX1 continuous
6ES7193-4CG30-0AA0
SIEMENS ET 200S, SIMATIC DP, 1 terminal module TM-E30C44-01 for ET 200S for electronic modules 30 mm overall width, spring-type terminals 4x 4 terminal connections without terminal access to AUX1, AUX1 continuous

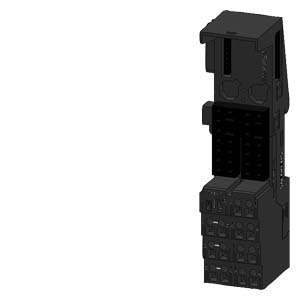

6ES7193-4CK20-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-P30S44-A0 f. ET200S f. PM-E F PROFIsafe power module, 30 mm overall width, Screw-type terminals 2x3+2x4 terminal connections, with terminal access to AUX1, AUX1 interrupted

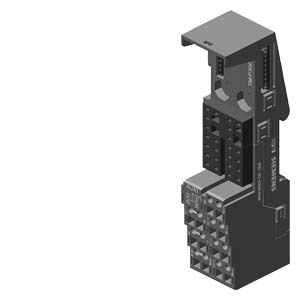

6ES7193-4CK30-0AA0
SIEMENS ET 200S, SIMATIC DP, Terminal module TM-P30C44-A0 f. ET200S f. PM-E F PROFIsafe power module, 30 mm overall width, spring-type terminals 2x3+2x4 terminal connections, with terminal access to AUX1, AUX1 interrupted
6AG1138-4FA05-2AB0
SIEMENS ET 200S, SIPLUS ET 200S F-DI 24 V PROFIsafe -25...+60°C with conformal coating based on 6ES7138-4FA05-0AB0 . Electronics module for ET 200S, 4/8 F-DI PROFIsafe, 24 V DC, 30 mm overall width, up to Category 4 (EN 954-1)/ SIL3 (IEC 61508)/PLE (ISO 13849), can also be used in PROFINET configuration with IM 151-3 HF

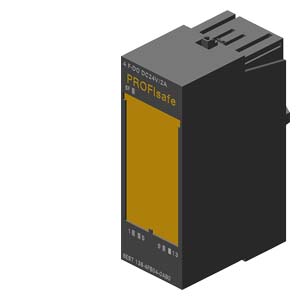

6AG1138-4FB04-2AB0
SIEMENS ET 200S, SIPLUS ET 200S F-DO 24 V PROFIsafe -25...+60°C with conformal coating based on 6ES7138-4FB04-0AB0 . Electronics module for ET 200S, 4 F-DO PROFIsafe, 24 V DC/2 A, 30 mm overall width, up to Category 4 (EN 954-1)/ SIL3 (IEC 61508)/PLE (ISO 13849), can also be used in PROFINET configuration with IM 151-3 HF
